REPLACING THE BATTERY MODULE
To change the battery, the lower Tron 40S assembly is replaced with a new one.The battery module consists of the complete lower half of the Tron 40GPS and is to be replaced every 5. year.The marking on the battery module show the expiry date. A new battery comes complete and is easily replaced by opening the equator ring between the top and bottom of the EPIRB.The battery must be replaced if the EPIRB is activated for any purpose other than test.
Replacing the battery module should be done by skilled technicians only - preferable by a JOTRON agent.Your closest JOTRON agent with TronSTAT facilities has been specially trained to perform the necessary operation and is also able to do an extended test of the EPIRB, ensuring that the EPIRB operates within the specifications.

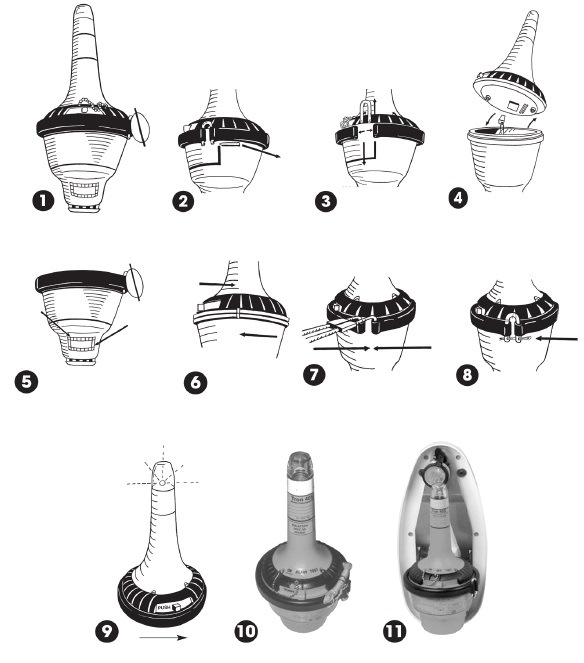

1. Remove the EPIRB from its bracket .
2. Remove the equator ring by pressing it out from the housing.
3. Separate the two halves of the EPIRB housing.
4. Unplug the 6 pin connector that comes from the lower EPIRB housing.
5. Control that the new battery module is marked with p/n 97780 and has a new expi
ration date approximately 5 years from purchase.
6. Fit a new gasket on top of the battery module and reconnect the 6 pin connector, be
sure that the connector is fitted properly. A noticeable «click» should be heard
when the connector is in place.
7. Please make sure that the enclosed silicagel bag is fastened inside the emergency
product, with the supplied strips into/between holes in the black cover.
IMPORTANT: Cut the strips X-96898 after mounting of silicagel to avoid the strips
to come between rubber gasket and top housing.
8. Please also fit the enclosed anti corrosion adhesive tape to the inside the battery
before assembly of the unit.
9. Orientate the two halves of the EPIRB the following way:
An orientation tab is fitted on both halves of the EPIRB,These tabs must be placed
carefully on top of each other.
10. Make sure that the gasket is properly in place, and replace the equator ring using
a special tool to tighten it together.
11. Replace the U-shaped bolt and a new split pin to secure the bolt in the equator
ring.
12. Remount EPIRB in its bracket.
卫星紧急
示位标
GMDSS float free satellite emergency positioning beacon,EPIRB
Easy and flexible Mounting
Strong 10KM visible xenon strobe light
Full function testing
Standard H20 hammar release mechanism
Designed for fast and easy service
Easy remote programming of vessel identity
Prepared for GPS
Service stations world wide
产品配置：
GMDSS 121.5/406 M Hz EPIRB
内附电池和静水压力释放器
MB4 手动或FB4自由漂浮式支架
产品性能：TRON 40S应急
示位标水密性：Tron 40S 在***少10米水深保持水密；
浮水性： Tron 40S能浮水；
坚固、稳定：Tron 40S能从30米高处跌入水中而不致损坏。他能抵受海水、油水和阳光的影响；
操作：Tron 40S操作容易，设备表面印有简单的操作说明，附有一条20米的系索，可系在
救生筏上。
指示灯：Tron 40S设有一LED（发光二极管）闪灯，显示设备在功过状态，设备启动后，LED即可每分20次的频率闪亮。
电池单元：电池单元构成Tron 40S的整个下半部，应每4年更换，电池单元上标有失效日期。新的电池单元交付时已经完备，更换时只须打开上下半部之间的腰环。
水压单元：FB4型的自动漂浮支架上的水压单元必须每两年更换，失效日期标在水压单元上，更换的单元备有新的螺栓和安装件。
带有频闪灯确认的6种状态自检，可船上维修和编程， MED/FCC认可。
